1. Can be installed without power interruption
2. AT sheath provides excellent track resistance
3. Light weight and small diameter reduce ice/wind load and stress on towers/supports
4. Large span capability (exceeds 1000 meters maximum)
5. Excellent tensile strength and temperature performance
6. Service life expectancy over 30 years
Structural Parameters
Ref. outer diameter
mm | Ref. weight
kg/km | Rec. daily max. working tension
kN | Max allowable working tension
kN | Break strength
kN | Strength member CSA
2 mm | Modulus of elasticity
2 kN/mm | Heat expansion coefficient
-6 ×10-6/K | Suitable span
(NESC Standard,m) |
PE sheath | AT sheath | A | B | C | D |
12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
15.6 | 194 | 208 | 10.5 | 28 | 70 | 33.0 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
16.3 | 211 | 226 | 12.75 | 34 | 85 | 40.0 | 20.1 | 0.1 | 880 | 650 | 880 | 650 |
16.8 | 226 | 242 | 15.45 | 41 | 103 | 48.0 | 24.0 | -0.4 | 1000 | 750 | 1000 | 760 |
17.2 | 236 | 253 | 16.2 | 45 | 108 | 51.0 | 25.1 | -0.5 | 1100 | 800 | 1100 | 830 |
17.9
9 | 249 | 266 | 18.0 | 50 | 120 | 58.8 | 26.1 | -0.8 | 1180 | 880 | 1180 | 900 |
Product Application

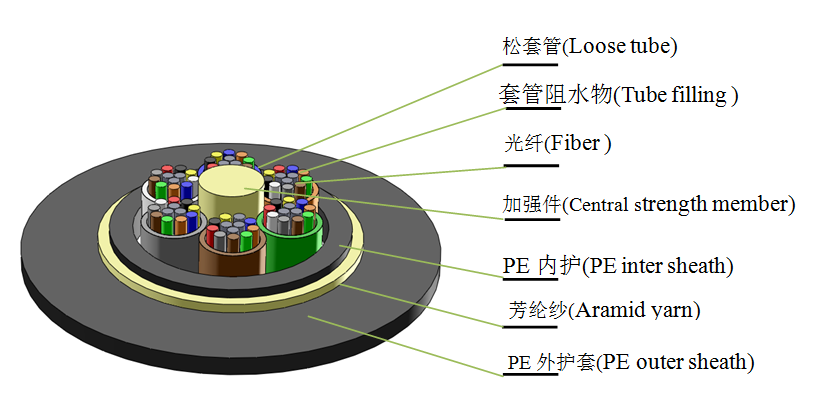

The ADSS optical cable from LeFei Optoelectronic Co., Ltd. is designed with practical consideration of power line conditions, suitable for high-voltage transmission lines of different classes. For 10kV and 35kV power lines, a polyethylene (PE) sheath may be used; for 110kV and 220kV power lines, the electric field distribution must be calculated to determine the cable suspension points and an arc-resistant (AT) outer sheath is required. Meanwhile, the aramid yarn quantity is meticulously designed and the stranding process is optimized to meet application requirements for different span lengths.
Application: Self-Supporting Aerial
Storage and Operating Temperature: -40℃ to +70℃
